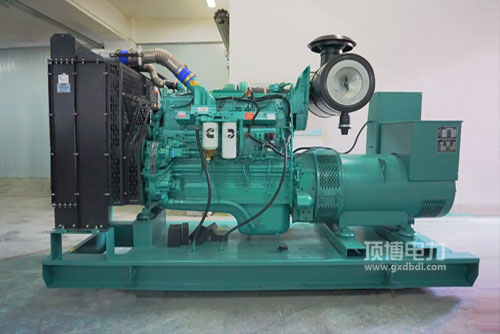

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打火机汽柴油性价比高性好: 最新的汽柴油调控软件系统软件，才有的STC、ESTC 等级调控软件系统软件，特异设汁的活塞式壳体点燃室，低压引射汽柴油，有效地做雾化，点燃有效地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用发起机瞬态机械性能非常好: 美好的发起机全局设计构思，积极配合康明斯特别的EFC平台，调整计算精程度高，相应期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用打着机升电功率高: 整体风格设置省油的suv.看上去分布恰当，正常运行平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50满足需要中国有非路段第一的阶段及美国Tier2. Tier 3排卸法规标准符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可求性好， 起思想正常运作及运维新车保养便利店加盟，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率标准 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯带发电用发起机的性能：表面积小， 收缩比低， 防雨百叶窗暖空气电加热，方便重启，手机端车机24v电源的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机机型	通用工作效率(kW)Prime Power	自备瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
