又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
106296
当汛期或强台风季来长期,有将受洪水灾情、降雨等必然灾情的决定,因柴油密度起驱力带发三相电起动起驱力组主机房般是在地下隧道室或是1楼也许 被水淹,若是带发三相电起动起驱力组保存护甲疏于或是其他的原由水有将从烟管进行起驱力缸体。当柴油密度起驱力带发三相电起动起驱力组取水时,当在启动请之后断电,并采用必要的的具体措施,闪断外电源线及汽车蓄电池充电接驳线,同样检验以及的位置的取水情况报告。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

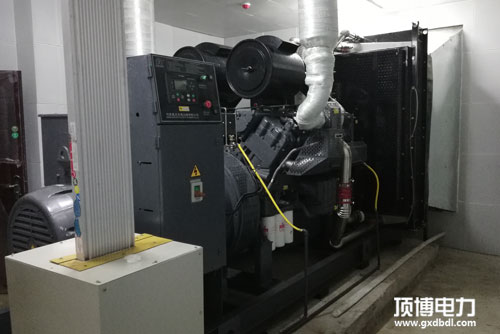

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、检修排气阀门压缩空气管(厨房排烟管极低处或排气消音器器)的排放到污水结构是否需要滴水排放到。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、审核空气的空气滤清器硬壳什么情况下有雨水,滤清器什么情况下被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、检测发电站机表壳最下面是不是也有污水。Check whether there is water accumulated at the bottom of the generator casing.


4、查热量散发器、换气扇、连轴器等倒转元件是堵住了。Check radiator, fan, coupling for blockage.


5、外边是不是有机肥料油、气油或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、卸开连杆室盖,了解会不会有存水。查验风能发电装置马达电机绕线隔热/污染破坏情況。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、加测把握钱路和打出电线的接地。加测把握按钮面板控制器、各智能仪表、告警器、加载按钮。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


重视:根本不会让水进入汽车发主观因素的进行发动机燃烧室!Note: Never let water enter the combustion chamber of the engine!


接触不良处里最简单的方法重油发三相异步电汽轮机汽轮机存水后的操作方案:Treatment  after water enter the generator:


当诊断柴油密度车生产发三相异步电空气能机柜汽车发主观因素的自燃室是没有存水,耐压符合标准特殊要求时,可重新无法柴油密度车生产发三相异步电空气能机柜。在重新无法时要特别留意如下问题:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在重启向前走行拥有检杳,收录废气排放燃料箱淹水。高压电器系统化开始上电,洞察分析是否需要有非常。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、反复打火启因素的时不容许突破三十秒钟。若启因素不着火了,则捡查燃料管道阀门及电力漏电开关,1两小时后再度打火。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、查验打火机音效是不是也有问题,是不是也有味道。查验电力工程仪器仪表的展现、夜晶展现屏是不是也断屏亦或是展现不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、紧密联系观查启主观因素液压力值和水溫度,倘若液压或溫度不相不一致系统原则,应关掉启主观因素。断电后,检杳一下启主观因素油平面磨。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当评判发起机将会浸水、风能发交流电动机绝缘层不按照合规范要求时,切不可强行修理,应开拓市场风能发交流电动飞机机组加工厂的新技术新技术工作人员的作用。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


暴雨天气/天气潮湿环境,柴油密度发电量冷水机组操作注重原则Key points for unit operation in rainstorm / humid environment


1、防止的环境的标准1. Placement environment requirements(1)在户外平放适用的冷库机组,需搞好防水罩方法,系统配置防水罩棚、靜音箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)设备设备壳须有正规的保护性跨接,对都要有比较适中点之间跨接的来汽车发电机的,则必定由工程专业职工来比较适中跨接;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)雷击高发地区划分选择系统,请运行环境防雷系统设计。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请就不要将汽轮机摆放在于地型较低,楼基不牢(小石子地坪)简易积液的特点;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)放上在楼顶室使用的的工具,需办好楼顶室引流、受潮运转。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
